Am I Missing Anything?

786 Views 12 Replies 5 Participants Last post by Si-Mon, Mar 27, 2010

elduce

Discussion Starter · Mar 27, 2010

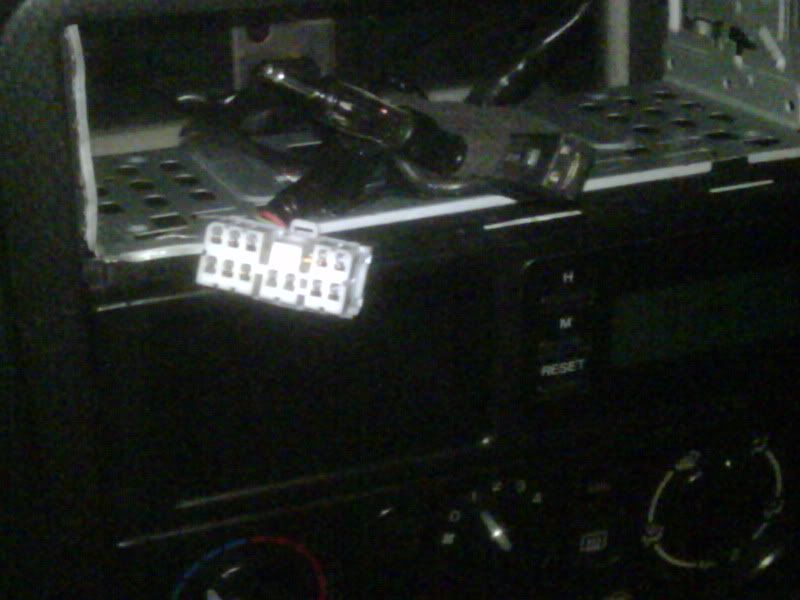

Can anyone please tell me if this is the standard stereo loom set up for a UK MK 2?

Checking the ISO loom converters on Ebay, it seems that the MX-5 ones that would fit the white plug actually have two white plugs, whereas my set up only has one.

Link to ebay loom:

http://cgi.ebay.co.uk/ISO-STEREO-RADIO-ADAPTOR-WIRING-LEAD-MAZDA-MX5-90-01_W0QQitemZ330399569368QQcmdZViewItemQQptZUK_Cars_Parts_Vehicles_Terminals_Cabling_ET?hash=item4ced5955d8

See less See more

Save

1 - 13 of 13 Posts

It should be back there somewhere, the other loom is just for rear speakers.

That said if yours isnt wired for headrest speakers or a wind blocker then you wouldn't need the second white one.

That white one has the power and the front speakers on it.

HTH

Save

miles

· #3 · Mar 27, 2010

Yep the second connector is just for rear speakers which are not fitted to mk2s.

And I got that exact same adaptor and it works fine.

Save

AndyMk2

· #4 · Mar 27, 2010

Now would be a good time to run some rear speaker wiring though - save undoing everything again later on

Save

DavesBRG5

· #5 · Mar 27, 2010

AndyMk2 said:
Now would be a good time to run some rear speaker wiring though - save undoing everything again later on

Agreed......If you havn`t got one, the rear windblocker with speakers is a worthwhile mod IMO

Save

Si-Mon

· #6 · Mar 27, 2010

Alternatvly do the cheaper thing and cut the headrest speakers into your headrests

. You will have left and right the right way around too

See less See more

Save

elduce

Discussion Starter · #7 · Mar 27, 2010 (Edited by Moderator)

Great info, thanks all.

Taking the headunit out later on won't be a problem if I do decide to fit rear speakers then.

Seeing as you all were so helpful, can anyone let me know the following:

I'm assuming the black plug on the right of the above picture is for the powered aerial? If so, how do I get this to work with an aftermarket head unit, again, I'm assuming it's not a standard plug?

See less See more

Save

miles

· #8 · Mar 27, 2010 (Edited by Moderator)

No it's the earth for some reason best known to mazda there is a separate earth rather than being built into the connector. There is a separate wire on the adaptor. The leccy aerial is part of the din arrangement so is plug and play.

Save

miles

· #9 · Mar 27, 2010

A little diagram to help visualise.

See less See more

Save

elduce

Discussion Starter · #10 · Mar 27, 2010

Awesome, thanks very much.

Forgive the noob question, but I'm assuming without earthing that separate earth cable, my head unit isn't going to work? If so, perhaps some sort of scotchlock arrangement on that cable and a makeshift earth connection will do the job?

Re the rationale behind separate earth cable, would it be reduce interference between the earth and the speaker signal cables?

Save

miles

· #11 · Mar 27, 2010

Possibly

Either connect/splice the black wire on the adaptor to the one on the car or ground the adaptor wire independently.But yeah it will have to be earthed to work, but the adaptor will take care of the rest.
